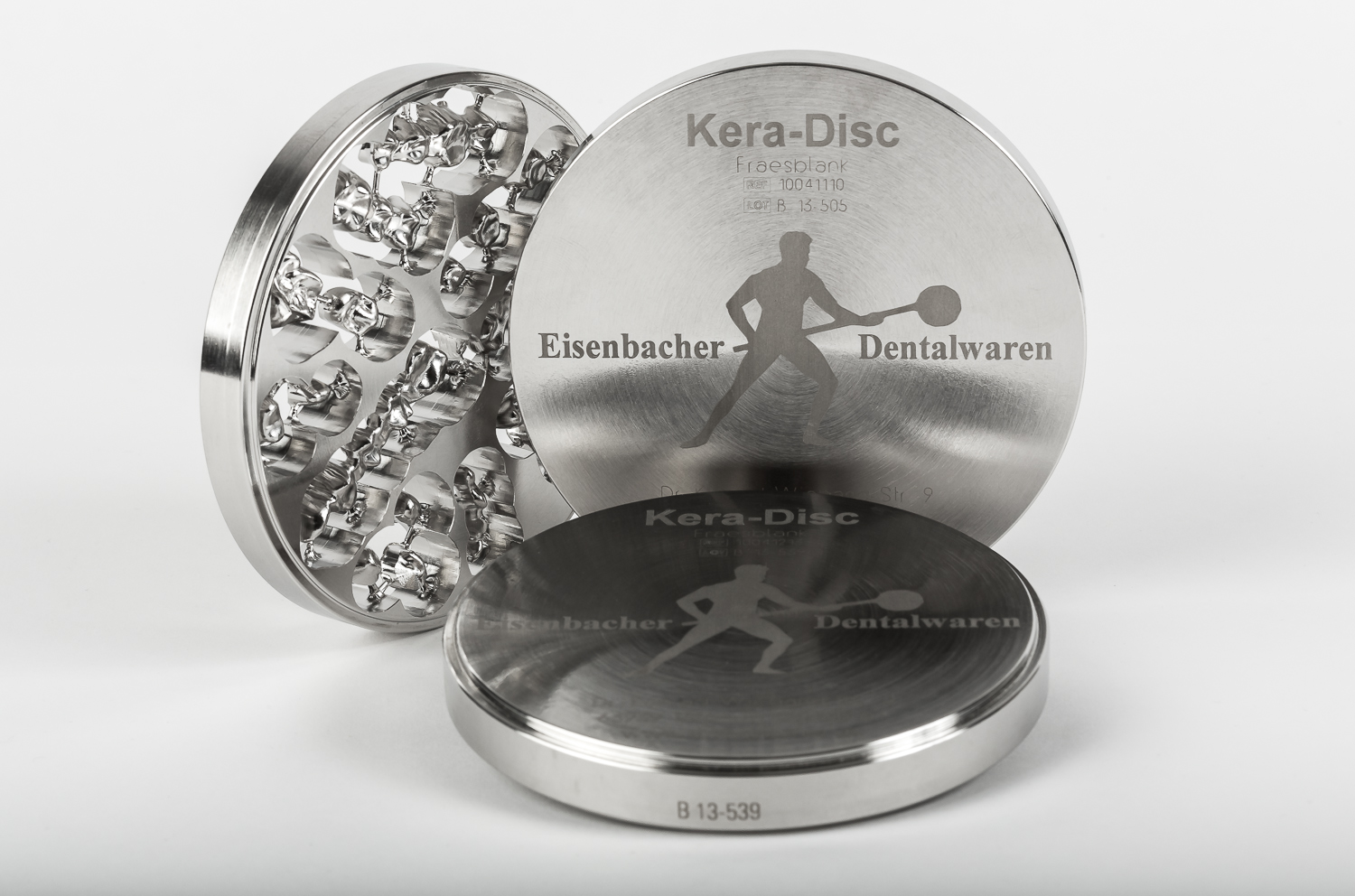

Discs

Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:

• proven remanium^® star composition
• certified and time-tested base material for all applications in crown and bridge work
• ductility and strength Type 3, DIN EN ISO 22674 suitable for machining
• ideal for ceramic veneering using the conventional CTE range
• highly suitable for secondary parts
• excellent laser weldability

: 98.4 mm
Thickness: 12 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion^® Me)

Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A₅: 5.9 %
Tensile strength R_m: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength R_p0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10^-6 K^-1
Density: 8.5 g/cm³

Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %

Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:

• proven remanium^® star composition
• certified and time-tested base material for all applications in crown and bridge work
• ductility and strength Type 3, DIN EN ISO 22674 suitable for machining
• ideal for ceramic veneering using the conventional CTE range
• highly suitable for secondary parts
• excellent laser weldability

: 98.4 mm
Thickness: 13.5 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion^® Me)

Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A₅: 5.9 %
Tensile strength R_m: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength R_p0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10^-6 K^-1
Density: 8.5 g/cm³

Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %

Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:

• proven remanium^® star composition
• certified and time-tested base material for all applications in crown and bridge work
• ductility and strength Type 3, DIN EN ISO 22674 suitable for machining
• ideal for ceramic veneering using the conventional CTE range
• highly suitable for secondary parts
• excellent laser weldability

: 98.4 mm
Thickness: 15 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion^® Me)

Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A₅: 5.9 %
Tensile strength R_m: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength R_p0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10^-6 K^-1
Density: 8.5 g/cm³

Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %

Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:

• proven remanium^® star composition
• certified and time-tested base material for all applications in crown and bridge work
• ductility and strength Type 3, DIN EN ISO 22674 suitable for machining
• ideal for ceramic veneering using the conventional CTE range
• highly suitable for secondary parts
• excellent laser weldability

: 98.4 mm
Thickness: 20 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion^® Me)

Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A₅: 5.9 %
Tensile strength R_m: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength R_p0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10^-6 K^-1
Density: 8.5 g/cm³

Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %

Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:

• proven remanium^® star composition
• certified and time-tested base material for all applications in crown and bridge work
• ductility and strength Type 3, DIN EN ISO 22674 suitable for machining
• ideal for ceramic veneering using the conventional CTE range
• highly suitable for secondary parts
• excellent laser weldability

: 98.4 mm
Thickness: 25 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion^® Me)

Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A₅: 5.9 %
Tensile strength R_m: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength R_p0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10^-6 K^-1
Density: 8.5 g/cm³

Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %

Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:

• proven remanium^® star composition
• certified and time-tested base material for all applications in crown and bridge work
• ductility and strength Type 3, DIN EN ISO 22674 suitable for machining
• ideal for ceramic veneering using the conventional CTE range
• highly suitable for secondary parts
• excellent laser weldability

: 98.4 mm
Thickness: 8 mm
Border: without
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion^® Me)

Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A₅: 5.9 %
Tensile strength R_m: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength R_p0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10^-6 K^-1
Density: 8.5 g/cm³

Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %

NPM Cobalt-based dental milling alloy for metal-ceramic, type 4, with step / shoulder

• Optimised milling properties due to special heat treatment
• High strength due to homogeneous metal structure
• Suitable for all high fusing veneering ceramics

Indications:

• Crowns and bridges for metal-ceramics
• Superstructures and bars

Technical Parameters:

• Yield Strength MPa – 440
• Elongation (%) – 14
• GPa – 210
• Tensile Strength – 819
• Density (g/cm3) – 8.55
• Hardness (HV 10/30) – 275

Titan based dental milling alloy for metal-ceramics, with step / shoulder.

• Clinical approved titanium alloy with high strength
• Very good milling properties
• Suitable for veneering with Ti-ceramics

Indications:

• Crowns and bridges for metal-ceramics
• Superstructures and bars

Technical Properties:

• Yield Strength (MPa) – 816
• Elongation (%) – 15
• Youngs Modul (GPa) – 115
• Tensile Strength (MPa) – 885
• Density (g/cm3) – 4.4
• Hardness (HV 10/30) – 318

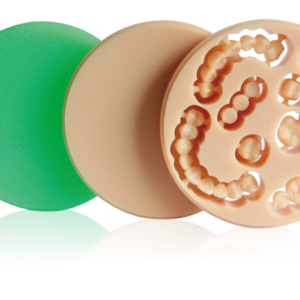

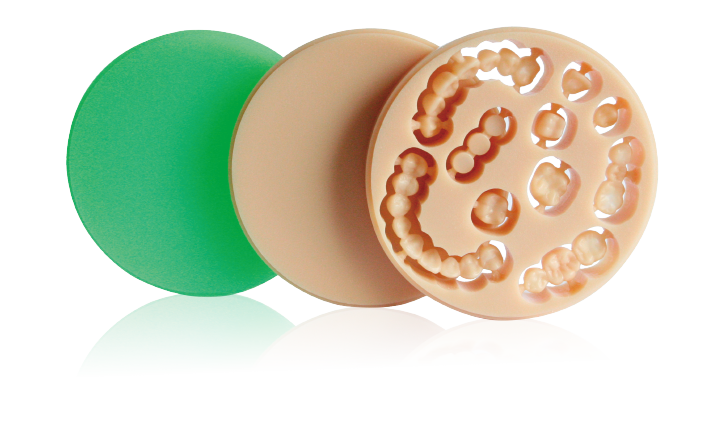

Residue free burn + easy milling without deformation.

Technical Parameters

• Melting Point – 110c-115c
• Hardness – 45-55
• Thermal Expansion – 5%
• Diameter – 98mm
