The advantage
The compact REITEL steam cleaner STAR is designed for use in dental laboratories, for manufacturing jewellery and for model production. The high pressure of 4 bar and temperature of 150 degree Celcius allow excellent cleaning of different items or objects, e.g. remainders of wax on models, dirt at inaccessible points of filigree work or remainders of soldering. Grease, sticky wax, pickling agents, solvents and plaster residue are gently and quickly removed without any chemical additives.
Technology
Design
Specifications:
Current consumption: | 1.100 W |
Filling: | manual |
Height/ width/ depth: | 280 / 290 + 40 / 330 mm |
Housing : | Steel/ laminated |
Line voltage : | 230 V/ 50- 60 Hz |
Steam level: | 1 |
Tank capacity: | 3.5 L |
Temperature: | 150 degrees Celcius variable |
Weight: | 8 kg |
Place your order and we’ll contact you to organise label and handle designs.
Approx. 4-6 week lead time
Place your order and we’ll contact you to organise label and handle designs.
Approx. 4-6 week lead time
Expansion Screws Magnum/pkt100
Expansion Screws Stainless Steel Magnum
~ With cone-shaped expansion screw
~ Skeleton design
~ Holes in body of screws for better retention in acrylic
~ Built in stops prevent screws coming apart
~ Maximum expansion 11.0mm
Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:
: 98.4 mm
Thickness: 25 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion® Me)
Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A5: 5.9 %
Tensile strength Rm: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength Rp0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10-6 K-1
Density: 8.5 g/cm3
Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %
Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:
: 98.4 mm
Thickness: 20 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion® Me)
Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A5: 5.9 %
Tensile strength Rm: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength Rp0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10-6 K-1
Density: 8.5 g/cm3
Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %

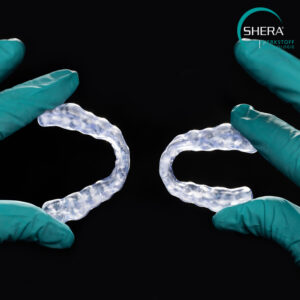

Choose TAFF for strength and durability.
Both Taff and Flex deliver a smooth polish and exceptional fit. For splints, repositioners, mouth and nightguards. Extremley impact-resistant, flexible and break-proof. Easy to polish, odourless and tasteless.
– MMA-, THF-MA- and TPO-free
– medical device of class IIa
Colour – Clear
Wavelength – 385 nm

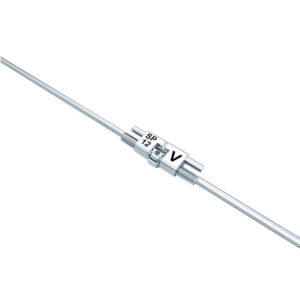

Expansion Screws Maxi /pkt100
Expansion Screws Stainless Steel Maxi
~ With cone-shaped expansion screw
~ Skeleton design
~ Holes in body of screws for better retention in acrylic
~ Built in stops prevent screws coming apart
~ Maximum expansion 7.5mm
Proven CoCr bonding alloy for CAD/CAM milling systems. Optimized casting structure in implant quality.
Advantages:
: 98.4 mm
Thickness: 18 mm
Border: 10 mm
Norm: DIN EN ISO 22674 (Type 3)
Indication: for all constructions manufactured using milling technique such as crowns, bridges, supra-structures, and also ceramic bonding with suitable ceramics (e.g. ceraMotion® Me)
Technical data
Solidus temperature: 1320 ℃ / 2408 ℉
Liquidus temperature: 1420 ℃ / 2588 ℉
Elongation A5: 5.9 %
Tensile strength Rm: 506 MPa
Modulus of elasticity E: 202 GPa
Hardness: 281 HV 10
0.2% Yield strength Rp0.2: 320 MPa
CTE 25 ℃ – 500 ℃ / 77 ℉ – 932 ℉: 14.1 x 10-6 K-1
Density: 8.5 g/cm3
Alloy composition
Co: 60 %
Cr: 28 %
W: 9 %
Si: 1 %
Nb: <1 %
Mn: <1 %
N: <1 %
Fe: <1 %
For the production of base parts for orthodontic appliances, surgical guides and X-ray templates. Validated for autoclave sterilization according to EN ISO 17664. Very high mechanical stability
– medical device class IIa
– MMA-free, tasteless
Colour – Clear
Wavelength – 385 nm
Choose FLEX for comfort and elasticity.
Both Taff and Flex deliver a smooth polish and exceptional fit. For splints, repositioners, mouth and nightguards. Extremley impact-resistant, flexible and break-proof. Easy to polish, odourless and tasteless.
– MMA-, THF-MA- and TPO-free
– medical device of class IIa
Colour – Clear
Wavelength – 385 nm
Variety Click SP Maxi /pkt10
